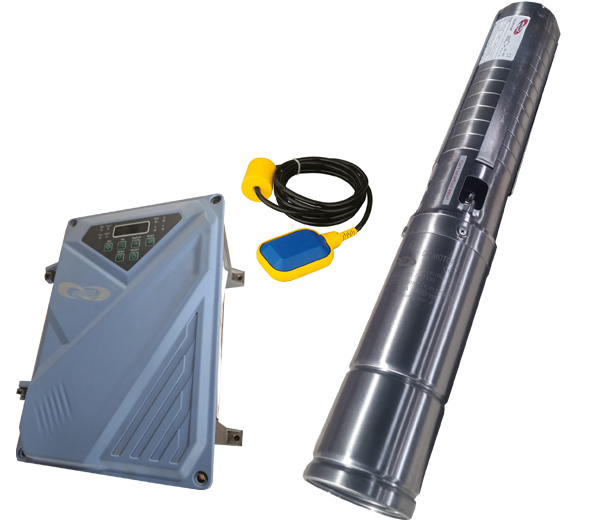

AC/DC SOLAR KIT 3” AC/DC BRUSHLESS 750W (PUMP, MOTOR, CONTROLLER, FLOAT SWITCH)
R9200,00
The Hurricane 3EPC3.5-95-110-750 3” AC/DC solar borehole pump comes complete with 750W 110V submersible motor and pump automatic 110V control box with water level sensors and is capable of delivering up to 800/hour at a depth of 90m. (Solar panels not included, requires solar panels)
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 3″ (7.5cm)
Motor, Pump & Control Box
Solar : 110V 0.75KW
Equipped with an automatic (water level sensors) control box 110V 0.75KW
Warranty : 12 Month
According to our general sales conditions
Specifications
- Power : 0.75KW
- H/Max : 95M
Water Delivery Pump Curve
| 3EPC3.5-95-110-750 3” AC/DC | 15 | 30 | 45 | 60 | 75 | 90 | DEPTH | |||
| 3” B/LESS | 3200 | 2900 | 2500 | 2200 | 1500 | 800 | L/H | |||
| 110V 750W H/MAX 95M |
| Weight | 10 kg |
|---|---|
| Dimensions | 107 × 26 × 14 cm |
