AC/DC SOLAR KIT 3” AC/DC BRUSHLESS 1500W (PUMP, MOTOR, CONTROLLER, FLOAT SWITCH)
R9602,50

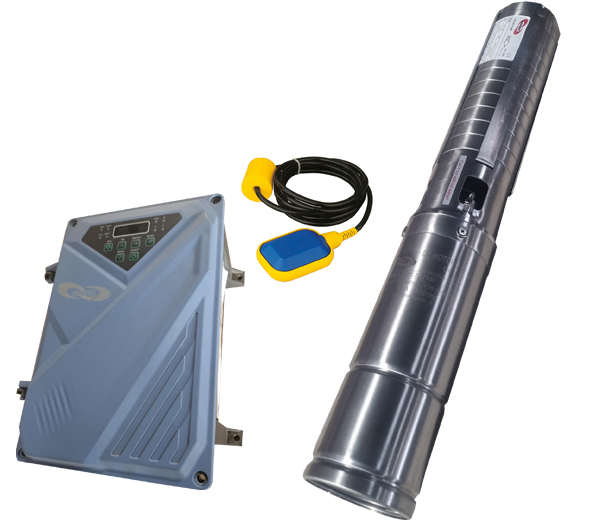

The Hurricane 3EPC3.8-180-200-1300 3” AC/DC solar borehole pump comes complete with 1300W 200V submersible motor and pump automatic 200V control box with water level sensors and is capable of delivering up to 500/hour at a depth of 150m. (Solar panels not included, requires solar panels)
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 3″ (7.5cm)
Motor, Pump & Control Box
Solar : 200V 1.5KW
Equipped with an automatic (water level sensors) control box 200V 1.5KW
Warranty : 12 Month
According to our general sales conditions
Specifications
- Power : 1.5KW
- H/Max : 180M
Water Delivery Pump Curve
| 3EPC3.8-180-200-1500 3” AC/DC | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 | 163 | DEPTH |
| 3” B/LESS | 3600 | 3500 | 3200 | 3000 | 2800 | 2500 | 2200 | 1800 | 1000 | L/H |
| 200V 1500W H/MAX 180M |
| Weight | 18 kg |
|---|---|
| Dimensions | 120 × 26 × 15 cm |
