3” AC/DC BRUSHLESS 1100W (PUMP, MOTOR, CONTROLLER, FLOAT SWITCH)
R9430,00

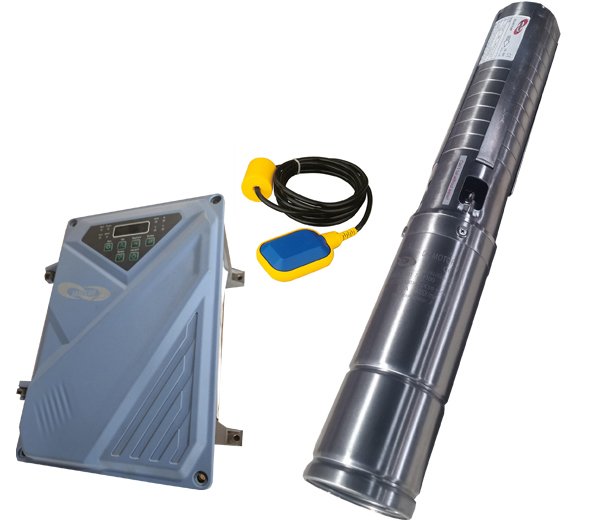

The Hurricane 3EPC3.8-123-150-1100 3” AC/DC solar borehole pump comes complete with 1100W 150V submersible motor and pump automatic 150V control box with water level sensors and is capable of delivering up to 300/hour at a depth of 120m. (Solar panels not included, requires solar panels)
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 3″ (7.5cm)
Motor, Pump & Control Box
Solar : 150V 1.1KW
Equipped with an automatic (water level sensors) control box 150V 1.1KW
Warranty : 12 Month
According to our general sales conditions
Specifications
- Power : 1.1KW
- H/Max : 123M
Water Delivery Pump Curve
| 3EPC3.8-123-150-1100 3” AC/DC | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 | DEPTH | |
| 3” B/LESS | 3800 | 3300 | 3000 | 2800 | 2500 | 2000 | 1300 | 300 | L/H | |
| 150V 1100W H/MAX 123M |
| Weight | 12 kg |
|---|---|
| Dimensions | 112 × 26 × 14 cm |
