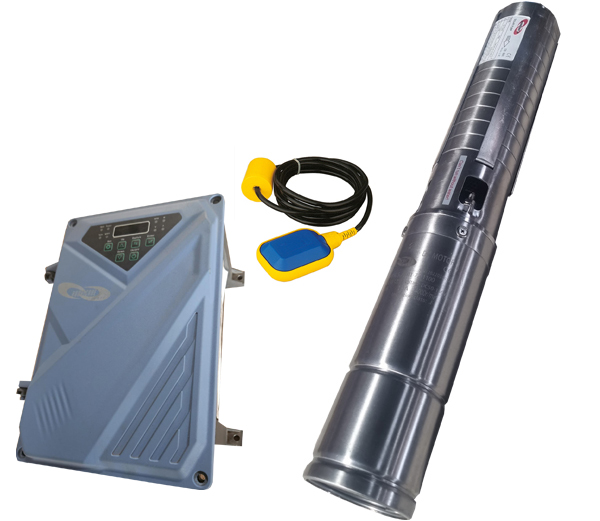

AC/DC SOLAR KIT 4” AC/DC BRUSHLESS 1300W (PUMP, MOTOR, CONTROLLER, FLOAT SWITCH)
R11500,00
The Hurricane 4EPC6-112-150-1300 AC/DC solar borehole pump comes complete with 1300W AC380V/DC550V submersible motor and pump automatic AC85-280V/DC80-430V control box with water level sensors and is capable of delivering up to 1000/hour at a depth of 290m. (Solar panels not included, requires solar panels)
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10cm)
Motor, Pump & Control Box
Solar : AC85-280V/DC80-430V 1.3KW
Equipped with an automatic (water level sensors) control box AC85-280V/DC80-430V 1.3KW
Warranty : 12 Month
According to our general sales conditions
Specifications
- Power : 1.3KW
- H/Max : 112M
Water Delivery Pump Curve
| 4EPC6-112-150-1300 AC/DC | 15 | 30 | 45 | 60 | 75 | 90 | 105 | DEPTH | ||
| 4” STAINLESS STEEL B/LESS | 5800 | 5000 | 4200 | 3900 | 3000 | 2000 | 1000 | L/H | ||
| V 1300W H/MAX M |
| Weight | 16 kg |
|---|---|
| Dimensions | 104 × 26 × 14 cm |
