4” AC/DC BRUSHLESS 2200W (PUMP, MOTOR, CONTROLLER, FLOAT SWITCH)
R17480,00

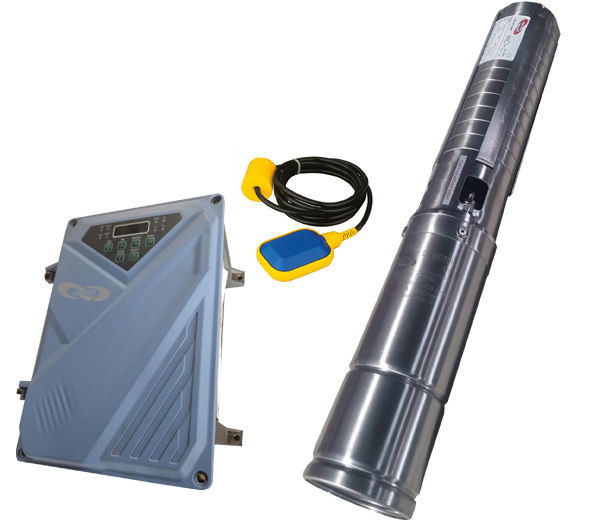

The Hurricane 4EPC6-175-300-2200 AC/DC solar borehole pump comes complete with 2200W 300V submersible motor and pump automatic 110V control box with water level sensors and is capable of delivering up to 1000/hour at a depth of 160m. (Solar panels not included, requires solar panels)
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10cm)
Motor, Pump & Control Box
Solar : 300V 2.2KW
Equipped with an automatic (water level sensors) control box 300V 2.2KW
Warranty : 12 Month
According to our general sales conditions
Specifications
- Power : 2.2KW
- H/Max : 175M
Water Delivery Pump Curve
| 4EPC6-175-300-2200 AC/DC | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | DEPTH | |
| 4” STAINLESS STEEL B/LESS | 5800 | 5300 | 5000 | 4200 | 3800 | 3000 | 2200 | 1000 | L/H | |
| 300V 2200W H/MAX 175M |
| Weight | 21 kg |
|---|---|
| Dimensions | 170 × 26 × 15 cm |
