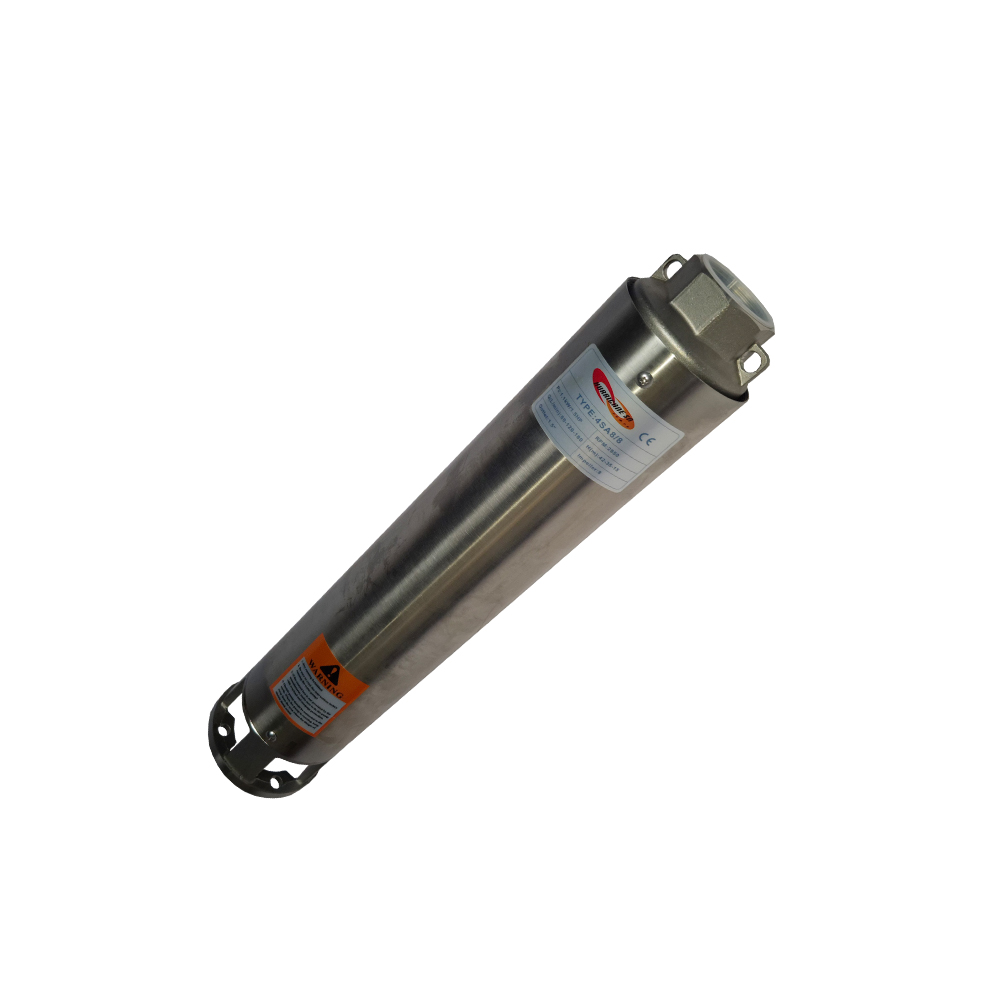

4″ Borehole Pump End 1.1KW (4SD8/8)
R1211,93
The Hurricane SA 4SD8/8 borehole submersible pump end requires a 1.1Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 47m.
It can be connected to a 380V three phase or 220V single phase 1.1KW borehole submersible motor.
Additional information
| Weight | 4,5 kg |
|---|---|
| Dimensions | 58 × 11 × 11 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Three Phase : 380V – 415V 1.1KW 2HP / 50Hz or Single Phase 220-240V 1.1KW 1.5HP Motor
Equip with a three phase 380V or 220V automatic or standard control box 1.1KW 1.5HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 1.1KW
- Power : 1.5HP
- Outlet : 40mm
- Pump Diameter : 100mm
- Pump Length : 580mm
- Pump Wieght : 4.5KG
Water Delivery Pump Curve
| Weight | 4,5 kg |
|---|---|
| Dimensions | 58 × 11 × 11 cm |
