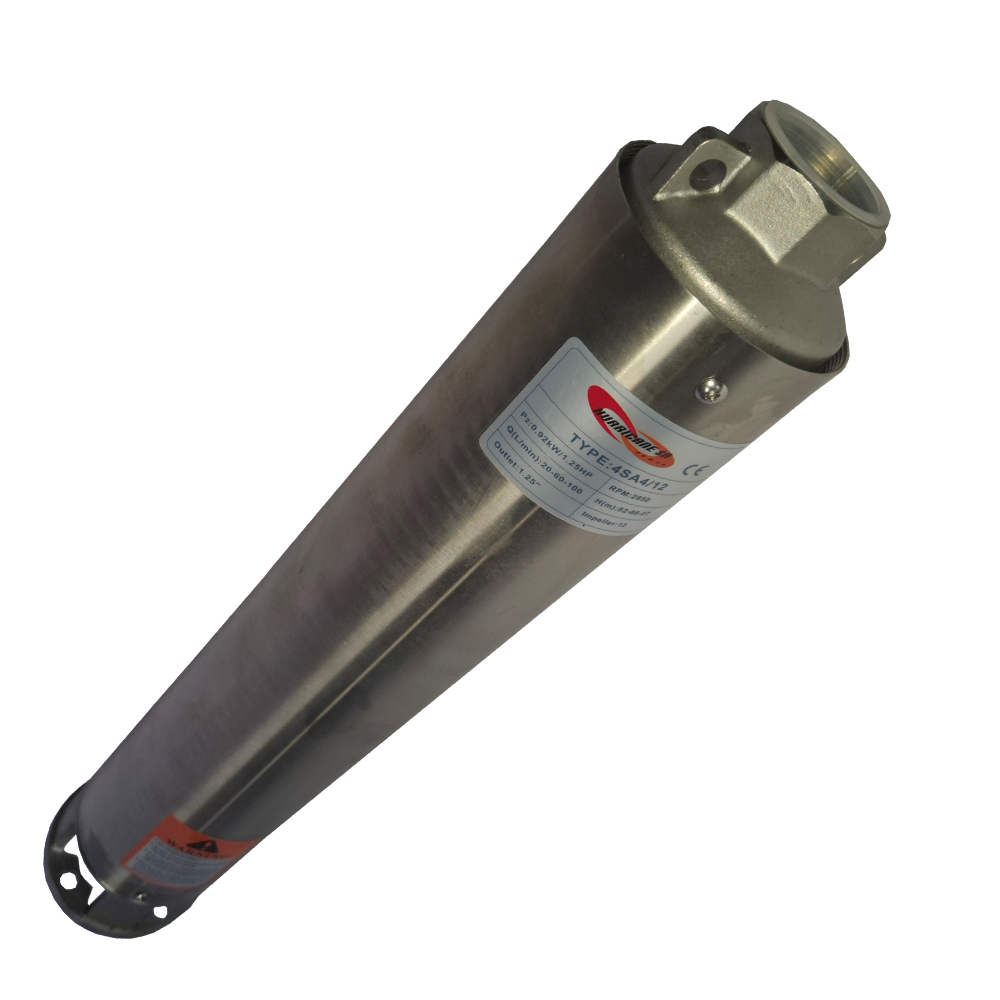

4″ Borehole Pump End 0.92KW (4SD4/12)
R1362,31
The Hurricane SA 4SD4/12 borehole submersible pump end requires a 0.92Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 82m.
It can be connected to either a 220V single phase 0.92KW borehole submersible motor or a 380V three phase 0.92KW borehole submersible motor.
Additional information
| Weight | 4,7 kg |
|---|---|
| Dimensions | 58 × 10 × 12 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 0.92KW 1.25HP / 50Hz or
Three Phase : 380V – 415V 0.92KW 1.25HP / 50Hz
Equip with either a standard (manual) or an automatic control box 0.92KW 1.25HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 0.92KW
- Power : 1.25HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 590mm
- Pump Wieght : 4.7KG
Water Delivery Pump Curve
| Weight | 5 kg |
|---|---|
| Dimensions | 58 × 10 × 12 cm |
