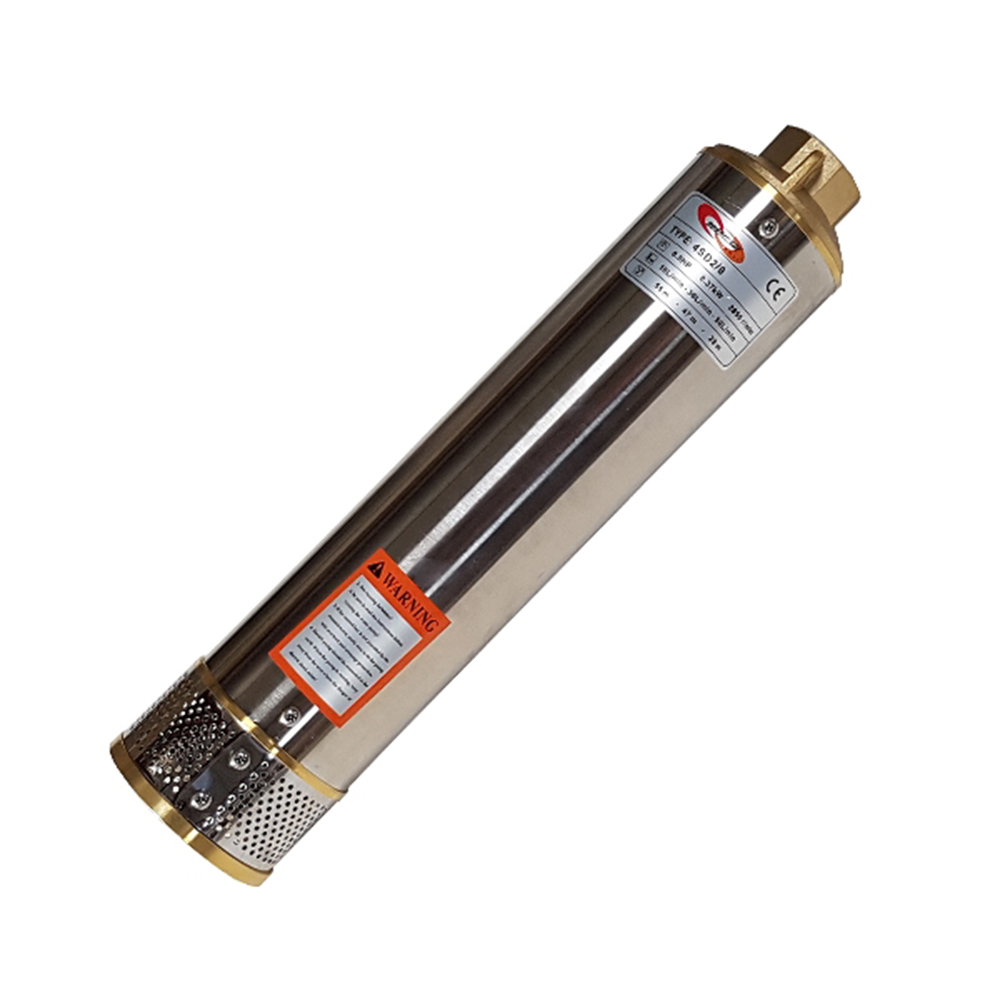

4″ Borehole Submersible Pump End Only 0.55KW (4SD2/12)
R1138,50
The Hurricane 4SD2/12 borehole submersible pump end requires a 0.55Kw submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 84m.
It can be connected to 220V single phase 0.55KW borehole submersible motor.
Additional information
| Weight | 4.6 kg |
|---|---|
| Dimensions | 54 × 11 × 15 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 0.55KW 0.75HP / 50Hz or
Equip with either a standard (manual) or an automatic control box 0.55KW 0.75HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 0.55KW
- Power : 0.75HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 503mm
- Pump Weight : 4.3KG
Water Delivery Pump Curve
| Weight | 5 kg |
|---|---|
| Dimensions | 58 × 11 × 11 cm |
