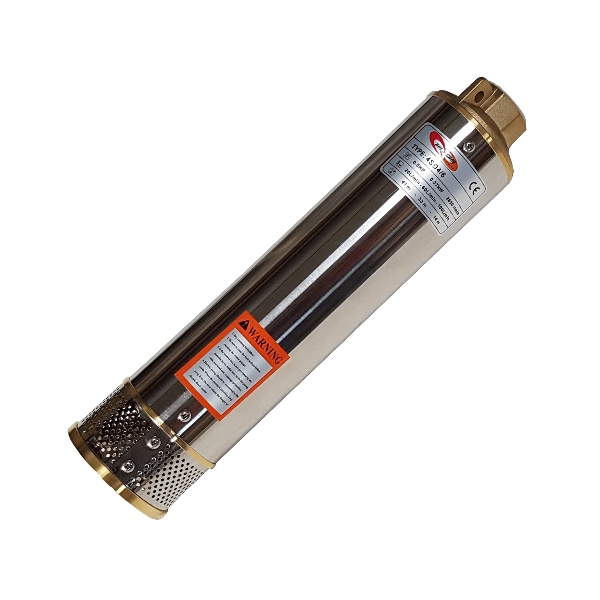

4″ Borehole Submersible Pump End Only 0.37KW (4SD4/6)
R1012,00
The Hurricane 4SD4/6 borehole submersible pump end requires a 0.37Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 41m.
It can be connected to a 220V single phase 0.37KW borehole submersible motor.
Additional information
| Weight | 3.6 kg |
|---|---|
| Dimensions | 44 × 11 × 15 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 0.37KW 0.5HP / 50Hz or
Equip with either a standard (manual) or an automatic control box 0.37KW 0.5HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 0.37KW
- Power : 0.5HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 397mm
- Pump Wieght : 3.8KG
Water Delivery Pump Curve
| Weight | 4 kg |
|---|---|
| Dimensions | 46 × 11 × 11 cm |
