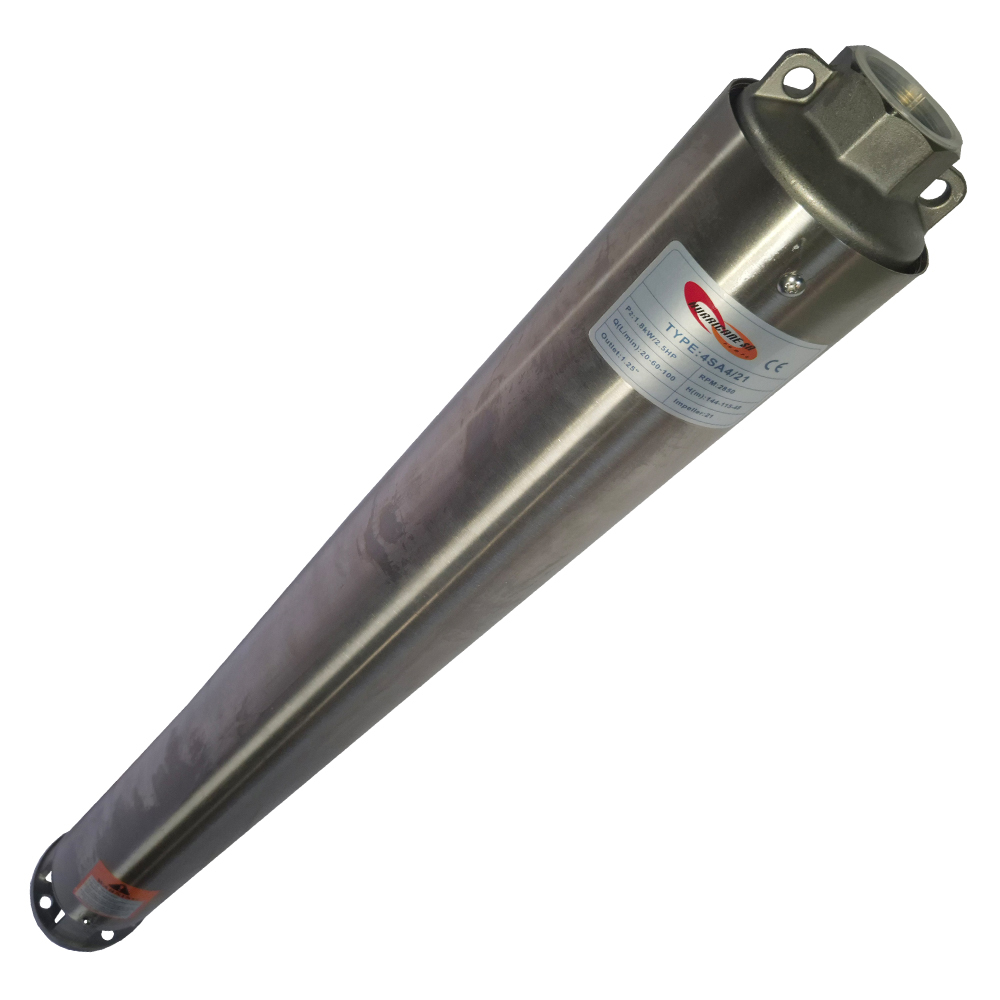

4″ Borehole Submersible Pump End Only 1.8KW (4SD4/21)
R1884,23
The Hurricane SA 4SD4/21 borehole submersible pump end requires a 1.8Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 144m.
It can be connected to either a 220V single phase 1.8KW borehole submersible motor or a 380V three phase 1.8KW borehole submersible motor.
Additional information
| Weight | 7,1 kg |
|---|---|
| Dimensions | 87 × 11 × 13 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 1.8KW 2.5HP / 50Hz or
Three Phase : 380V – 415V 1.8KW 2.5HP / 50Hz
Equip with either a standard (manual) or an automatic control box 1.8KW 2.5HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 1.8KW
- Power : 2.5HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 870mm
- Pump Wieght : 7.1KG
Water Delivery Pump Curve
| Weight | 7,1 kg |
|---|---|
| Dimensions | 87 × 11 × 13 cm |
