4″ Borehole Submersible Pump End Only 1.5KW (4SD4/19)
R1564,00

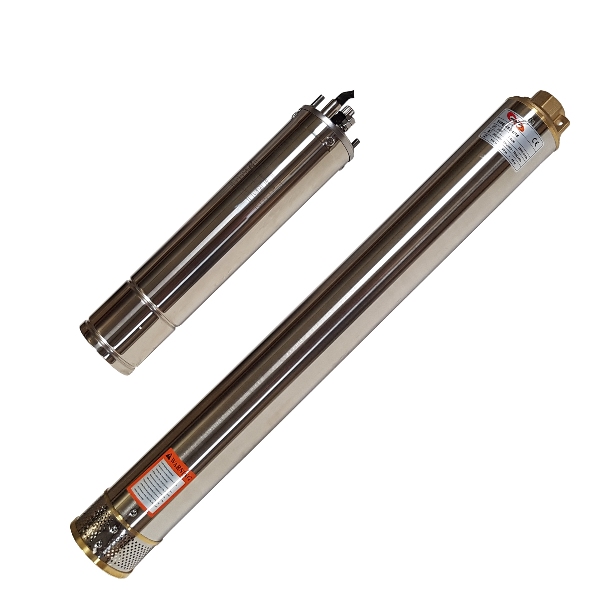

The Hurricane 4SD4/19 PM380 borehole pump and motor comes complete with a 1.5Kw 380V submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 124m.
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 83 × 22 × 15 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Pump & Motor
Single Phase : 380V 1.5KW 2HP / 50Hz
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 1.5KW
- Power : 2HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 782mm
- Pump Weight : 6.4KG
Water Delivery Pump Curve
| Weight | 7 kg |
|---|---|
| Dimensions | 82 × 11 × 11 cm |
