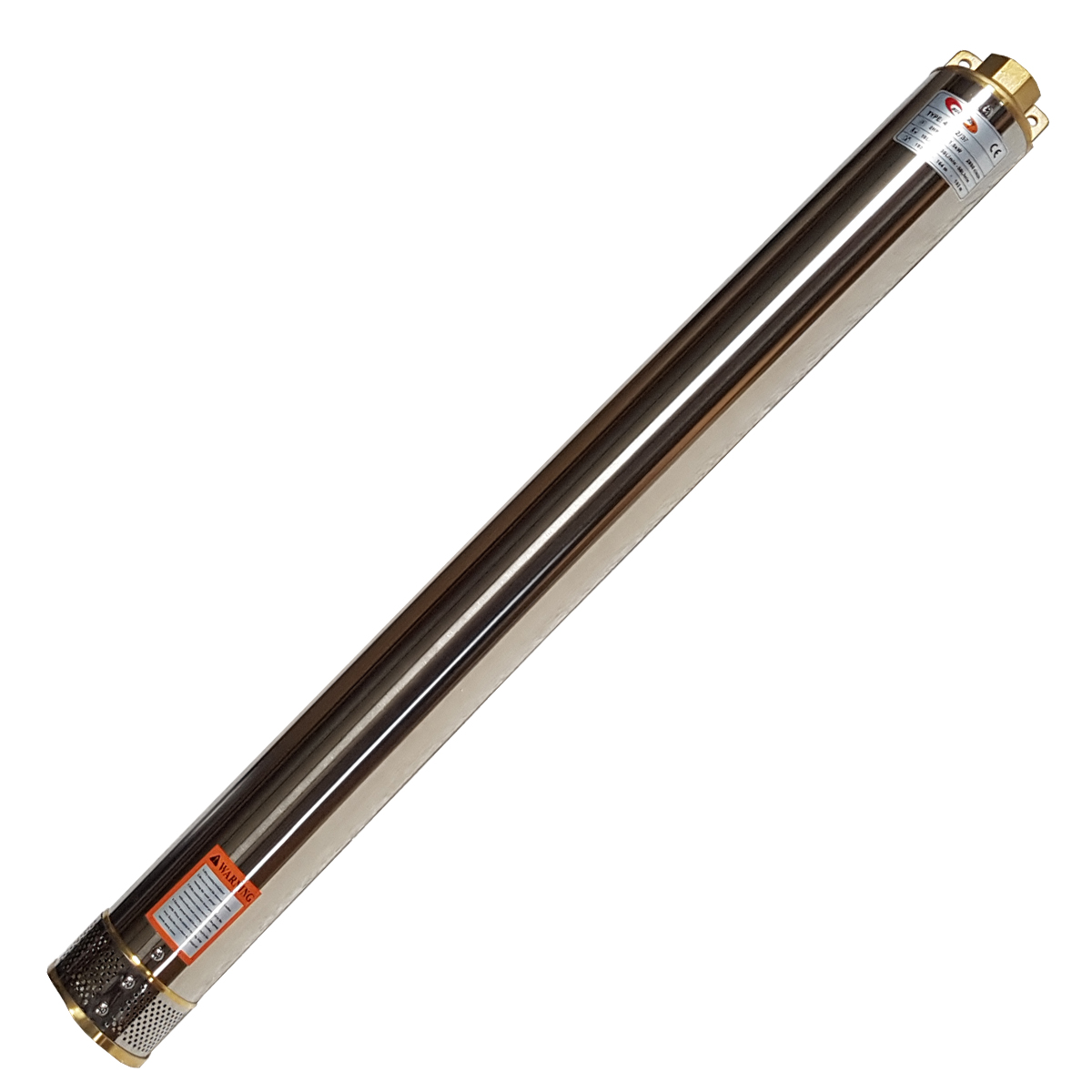

4″ Borehole Submersible Pump End Only 2.2KW (4SD2/37)
R1679,00
The Hurricane 4SD2/37 borehole submersible pump end requires a 2.2Kw submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 259m.
It can be connected to either 220V single phase 2.2KW borehole submersible motor or a 380V three phase 2.2KW motor.
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 2.2KW 3HP / 50Hz or
Three Phase : 380V – 415V 2.2KW 3HP/ 50Hz
Equip with either a standard (manual) or an automatic control box 2.2KW 3HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 2.2KW
- Power : 3HP
- Outlet : 32mm
- Pump Diameter : 100mm
Water Delivery Pump Curve
| Weight | 11,2 kg |
|---|---|
| Dimensions | 125 × 11 × 11 cm |
