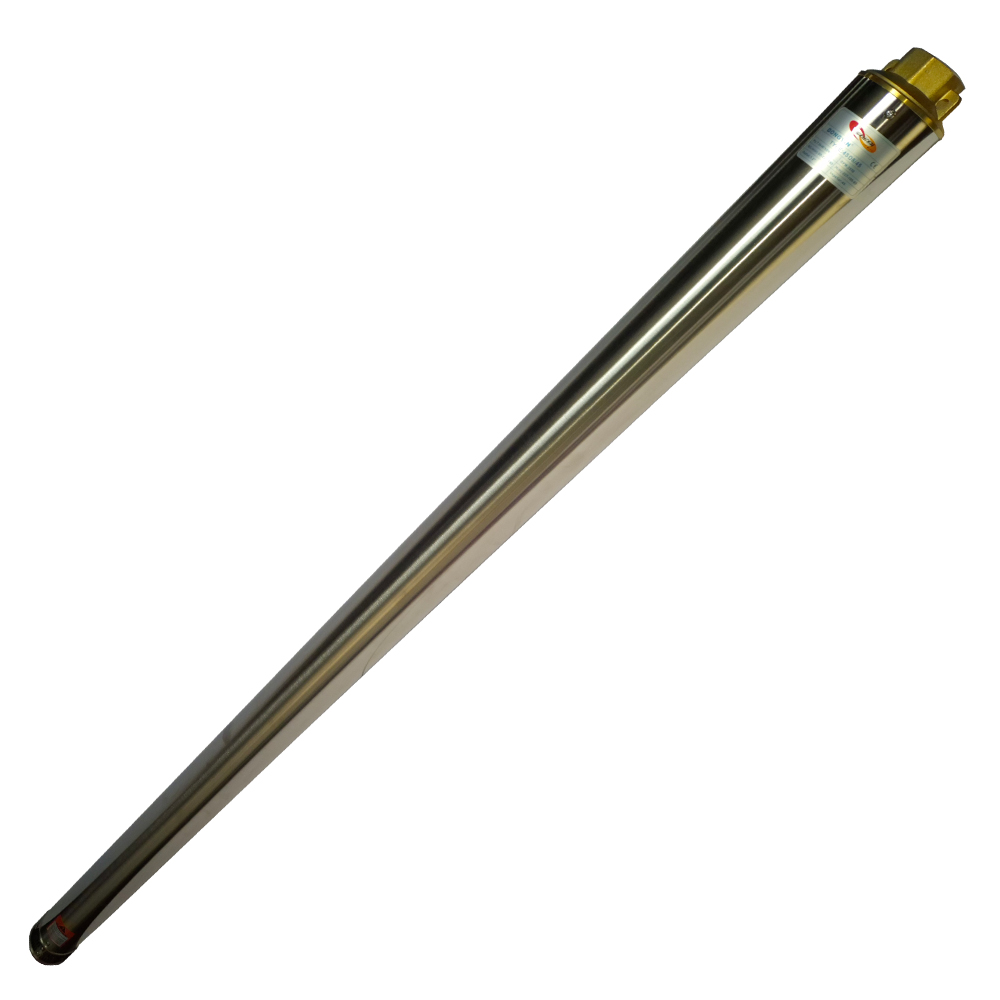

4″ Borehole Pump End 7.5KW (4SD8/45)
R3565,00
The Hurricane SA 4SD8/45 borehole submersible pump end requires a 7.5Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 237m.
It can be connected to a 380V three phase 7.5KW borehole submersible motor.
Additional information
| Weight | 16,1 kg |
|---|---|
| Dimensions | 199 × 11 × 13 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Three Phase : 380V – 415V 7.5KW 10HP / 50Hz
Equip with a three phase 380V automatic control box 7.5KW 10HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 7.5KW
- Power : 10HP
- Outlet : 40mm
- Pump Diameter : 100mm
- Pump Length : 2044mm
- Pump Wieght : 17.7KG
Water Delivery Pump Curve
| Weight | 16,1 kg |
|---|---|
| Dimensions | 199 × 11 × 13 cm |
