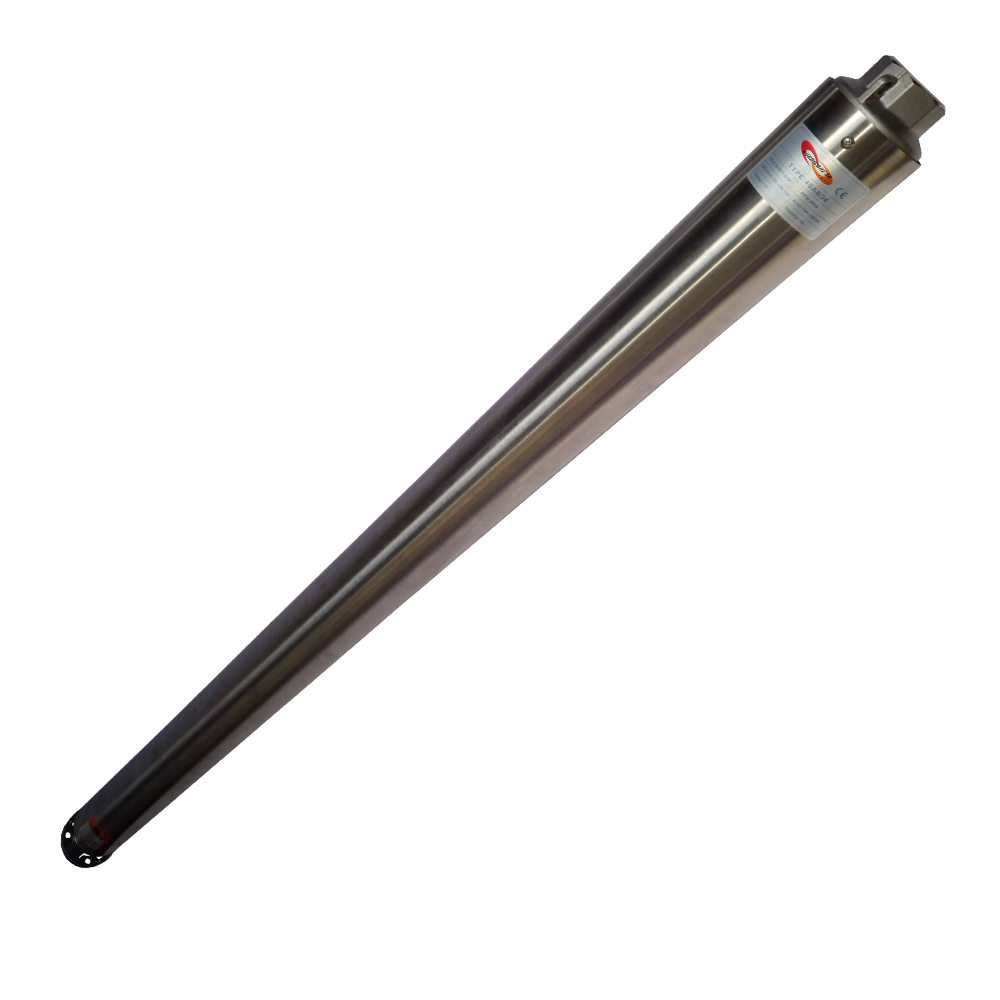

4″ Borehole Pump End Only 5.5KW (4SD8/37)
R3133,75
The Hurricane SA 4SD8/37 borehole submersible pump end requires a 5.5Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 195m.
It can be connected to a 380V three phase 5.5KW borehole submersible motor.
Additional information
| Weight | 14,2 kg |
|---|---|
| Dimensions | 168 × 11 × 11 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Three Phase : 380V – 415V 5.5KW 7.5HP / 50Hz
Equip with a three phase 380V automatic control box 5.5KW 7.5HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 5.5KW
- Power : 7.5HP
- Outlet : 40mm
- Pump Diameter : 100mm
- Pump Length : 1698mm
- Pump Wieght : 14.6KG
Water Delivery Pump Curve
| Weight | 14,2 kg |
|---|---|
| Dimensions | 168 × 11 × 11 cm |
