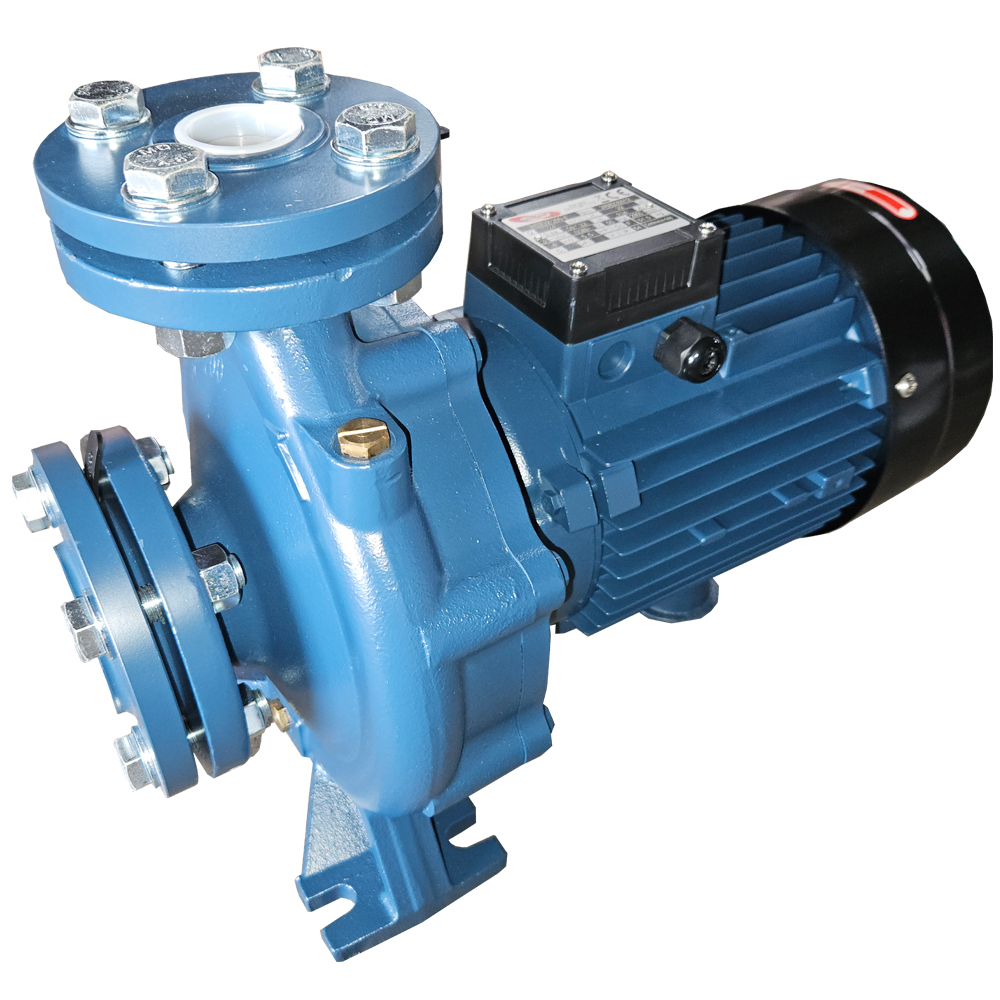

Centrifugal Pump 380V 4KW

Description

• Rated flow(m³/h): 35
• Rated head(m): 29
• Efficiency(%): 71
• NPSHr(m): 2
• Rated Speed(rpm): 2900

Technique

• Flow range (m³/h): 3.5-48m3/h
• Curve tolerance: ISO 9906 Annex A
• Maximum lift: 38m

Material

• impeller: cast iron
• Pump body: cast iron

Working conditions

• Medium temperature(℃): -10℃～+85℃
• Maximum ambient temperature(℃): +40℃
• Liquid delivered: Liquid without solid particles and long fibres, low viscosity，non-combustible，non-corrosion liquid or other liquid similar to water
• Critical cavitation margin(m): 2m
• Working pressure(MPa): 12bar

Installation

• Structure Type: Non-standard motor (Coaxial)
• Connection Code: Flange connection / thread-connection
• Inlet Diameter(mm): DN65
• Outlet Diameter(mm): DN40

Motor

• Motor Phase: Three phase
• Protection Class: IP54
• Motor pole number: 2
• Insulation Class: F
• Motor Power(kW): 4kW
• Motor model: XST32-200/40
• Power Frequency: 50Hz
• Rated Voltage (V): 380V
• Rated Current (A): 9.34A
• Energy Efficiency Level: Power factor:

Seal

• Machinery Seal: TF PB20-22
• Pack
• Net weight(kg): 53kg
• Gross weight(kg): 59kg
• Package size: 555x295x405mm

Warranty: 12 Month

According to our general sales conditions

Water Delivery Pump Curve
