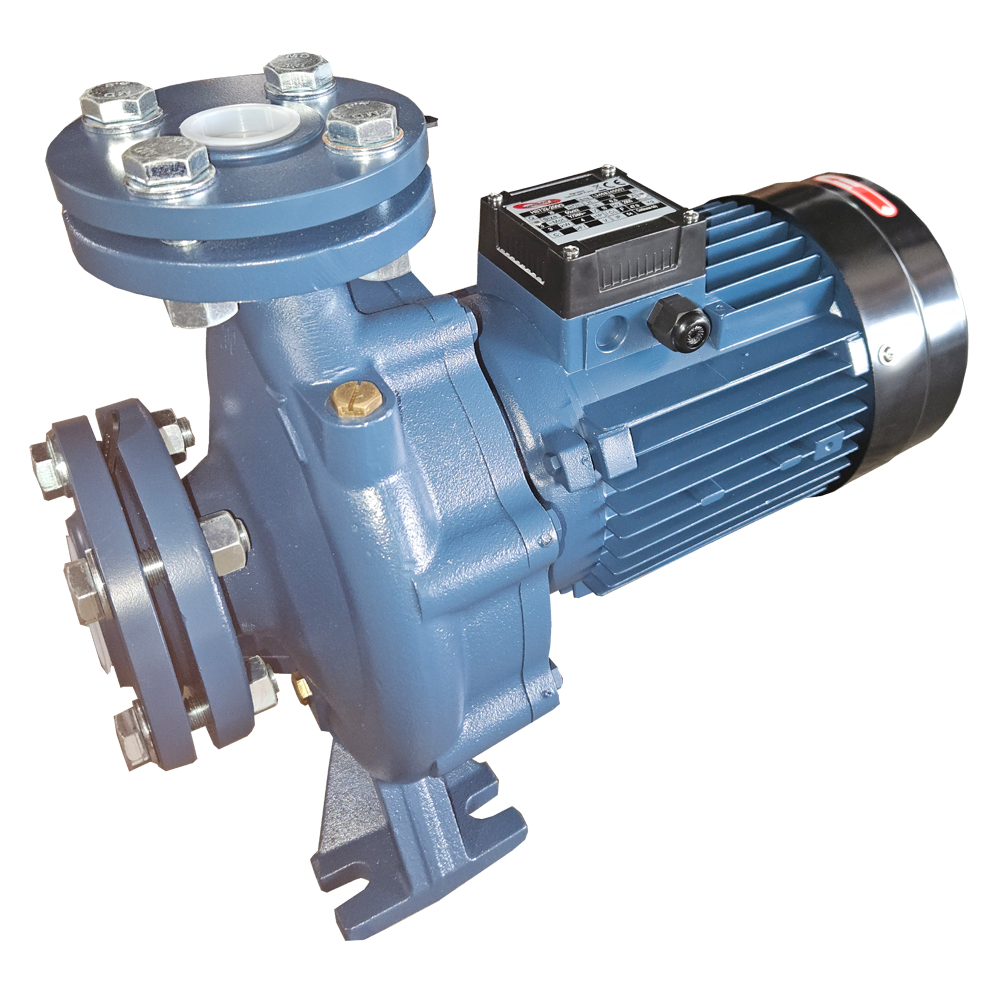

Centrifugal Pump 380V 3KW

Description

• Rated flow(m³/h): 20
• Rated head(m): 29
• Efficiency(%): 71
• NPSHr(m): 2
• Rated Speed(rpm): 2900

Material

• impeller: cast iron
• Pump body: cast iron
• Working conditions
• Medium temperature(℃): -10℃～+85℃
• Maximum ambient temperature(℃): +40℃
• Liquid delivered: Liquid without solid particles and long fibres, low viscosity，non-combustible，non-corrosion liquid or other liquid similar to water
• Critical cavitation margin(m): 2m

Installation

• Structure Type: Non-standard motor (Coaxial)
• Connection Code: Flange connection / thread-connection
• Inlet Diameter(mm): DN65
• Outlet Diameter(mm): DN40

Motor

• Motor Phase: Three phase
• Protection Class: IP54
• Motor pole number: 2
• Insulation Class: F
• Motor Power(kW): 3kW
• Motor model: HST32-200/30
• Power Frequency: 50Hz
• Rated Voltage (V): 380V
• Energy Efficiency Level: Power factor:

Seal

• Machinery Seal: TF PB20-22

Warranty: 12 Month

According to our general sales conditions

Water Delivery Pump Curve
