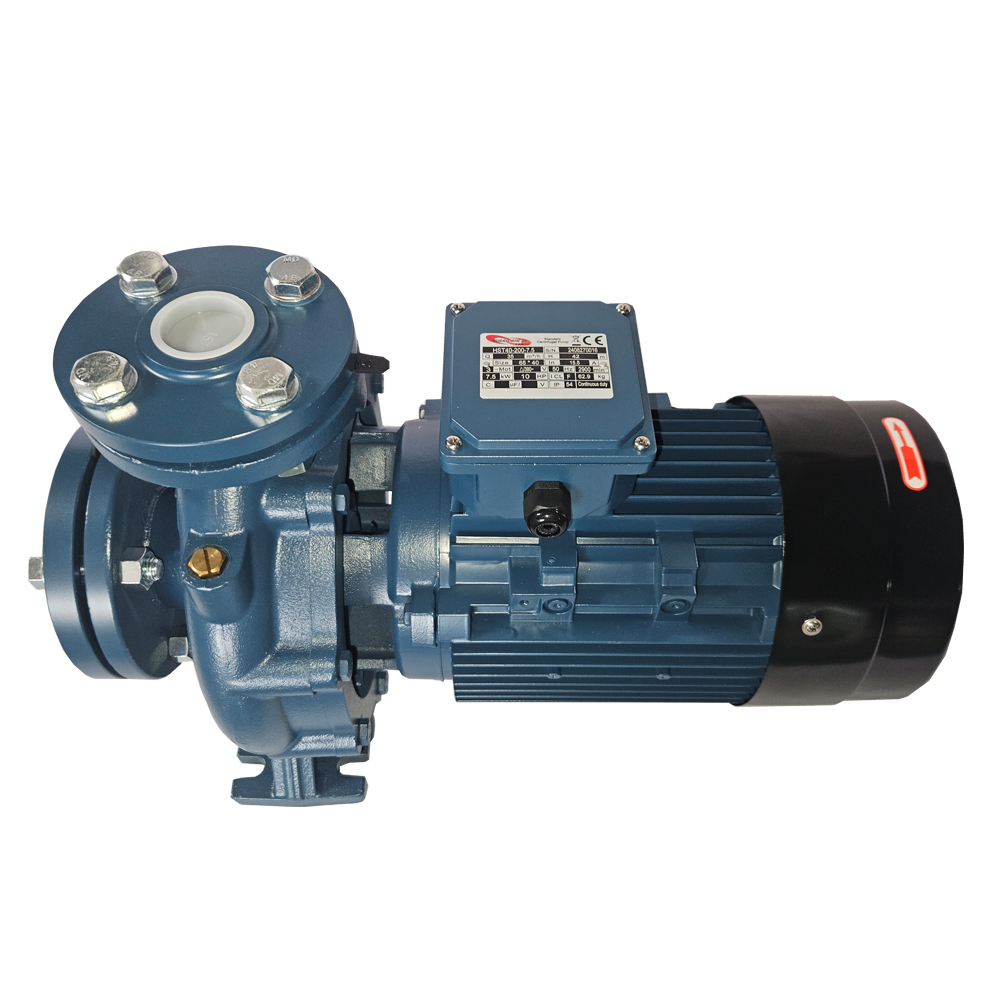

Centrifugal Pump 380V 7.5 KW

Warranty: 12 Month

According to our general sales conditions

Performance Date

• Rated flow(m³/h): 35
• Rated head(m): 42
• Efficiency(%): 63
• NPSHr(m): 2 Rate Speed(rpm): 2900

Technique

• Flow range (m³/h): 3.5-48m3/h
• Curve tolerance: ISO 9906 Annex A
• Maximum lift: 55m

Material

• Impeller: Stainless steel welding
• Pump body: cast iron

Working conditions

• Medium temperature(℃): -10℃～+85℃
• Maximum ambient temperature(℃): +40℃
• Liquid delivered: Liquid without solid particles and long fibres, low viscosity, non-combustible, non-corrosion liquid or other liquid similar to water.
• Critical cavitation margin(m): 2m
• Working pressure(MPa): 12bar

Installation

• Structure Type: Non-standard motor (Coaxial)
• Connection Code: Flange connection / thread-connection
• Inlet Diameter(mm): DN65
• Outlet Diameter(mm): DN40

Motor

• Motor Phase: Three-phase
• Protection Class: IP54
• Motor pole number: 2
• Insulation Class: F
• Motor Power(kW): 7.5kW
• Motor model: XST32-250/75
• Power Frequency: 50Hz
• Rated Voltage (V): 380V
• Rated Current (A): 15.5A
• Energy Efficiency Level:
• Power factor:

Seal: Machinery Seal: TF PB20-22

Pack

• Net weight(kg): 69kg
• Gross weight(kg): 77kg
• Package size: 645x325x455mm
