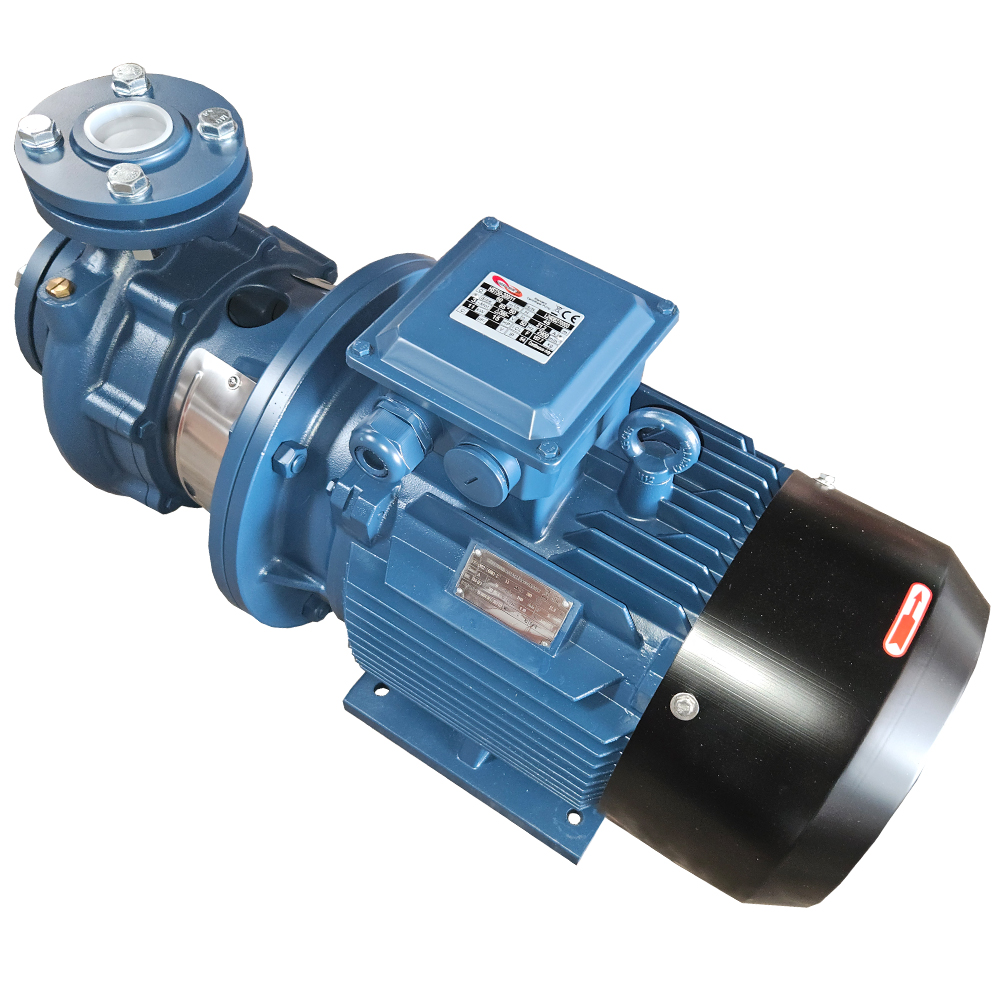

380V Centrifugal Pump 380V 11KW

Warranty: 12 Month

• According to our general sales conditions

Performance Date

• Rated flow(m³/h): 60
• Rated head(m): 45
• Efficiency(%): 63
• NPSHr(m): 2 Rate Speed(rpm): 2900
• 11 KW – 380V Centrifugal Pump (HST50-200-11)

Material

• Impeller: Stainless steel welding
• Pump body: cast iron
• Working conditions
• Medium temperature(℃): -10℃～+85℃
• Maximum ambient temperature(℃): +40℃
• Liquid delivered: Liquid without solid particles and long fibres, low viscosity, non-combustible, non-corrosion liquid or other liquid similar to water.
• Critical cavitation margin(m): 2m

Installation

• Structure Type: Non-standard motor (Coaxial)
• Connection Code: Flange connection / thread-connection
• Inlet Diameter(mm): DN65
• Outlet Diameter(mm): DN50

Motor

• Motor Phase: Three-phase
• Protection Class: IP54
• Motor pole number: 2
• Insulation Class: F
• Motor Power(kW): 11kW
• Motor model: HST50-200-11
• Power Frequency: 50Hz
• Rated Voltage (V): 380V
• Energy Efficiency Level:
• Power factor:

Seal: Machinery Seal: TF PB20-22
