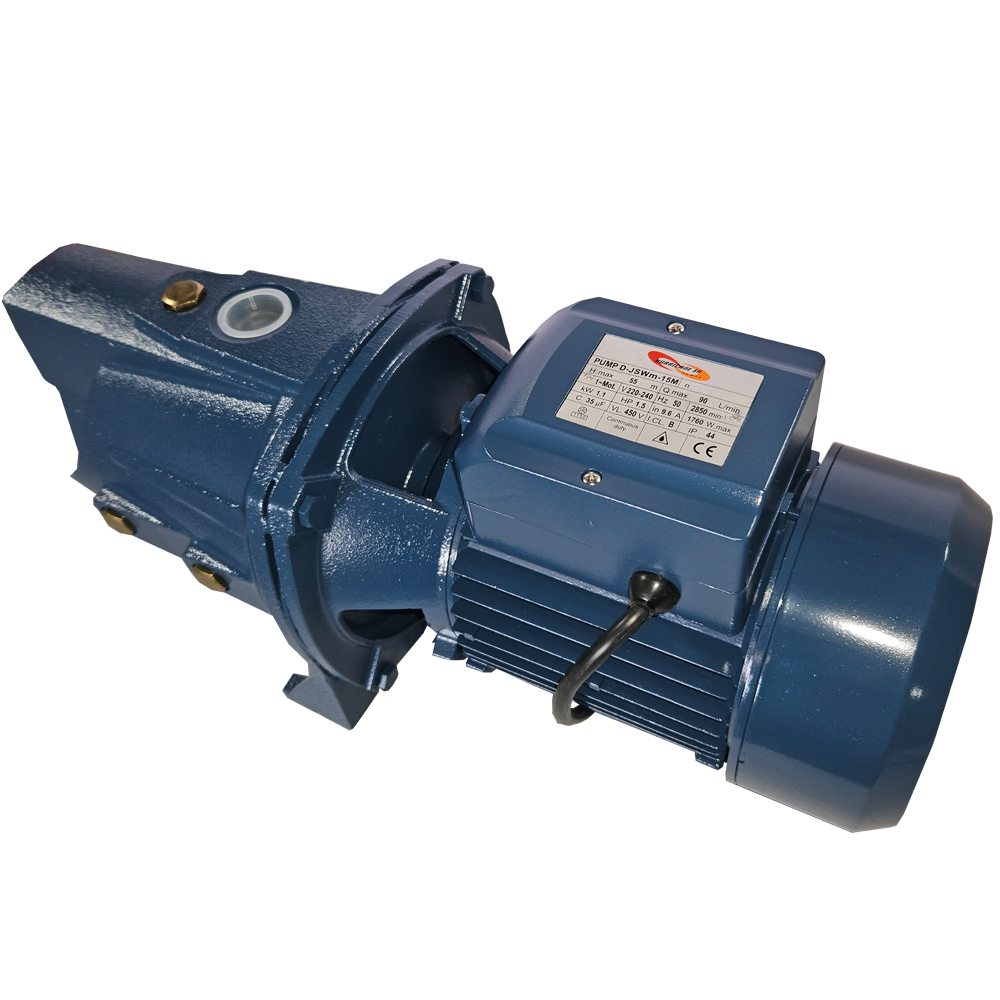

Jet Pressure Pump Self Priming 220V 1.1KW

R2599,00

The Hurricane SA JSWM15M centrifugal pressure pump is a 220V 1.1KW self priming pump used to boost pressure in waterline and for the transfer of clean water or non-aggressive liquid. It can be controlled by a PC13 automatic pump controler 220V.

Additional information

Weight	23,6 kg
Dimensions	55 × 24 × 25 cm

SKU: JSW15M DOYIN Categories: Jet Pumps Self Priming 220V, Pressure Pumps / Surface Pumps

Description
Additional information

Operating Conditions

Maximum fluid temperature : 40°C
Maximum ambient temperature : 40°C

Warranty : 12 Month

According to our general sales conditions

Specifications

Voltage : 220V – 240V 50Hz
Power : 1.1KW
Power : 1.5HP
Dimensions : 423mm(L) x 190mm(W) x 208mm(H)
Outlet Size : 25mm (1″)
Inlet Size : 25mm ( 1″)
Max Suction : 8m
Max Head : 60m
Max Flow : 60L/min

Pump

AISI 304 Shaft
Maximum Suction : 9m

Motor

Copper Winding
Built in thermal protector for single phase motor
Insulation class : F
Protection class : IPX4
Maximum ambient temperature : 40°C
IE2 Motor

Water Delivery Pump Curve

JSW CURVES

Weight	23,6 kg
Dimensions	55 × 24 × 25 cm
