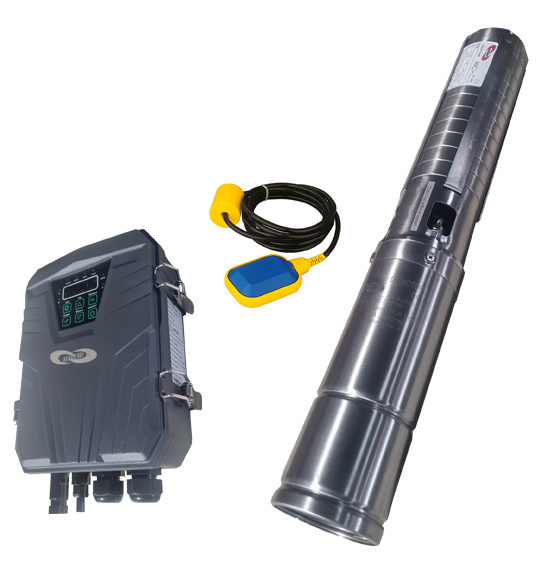

DC SOLAR KIT 4” DC ONLY BRUSHLESS 1500W (PUMP, MOTOR, CONTROLLER, FLOAT SWITCH)
R12075,00
The Hurricane 4ESC4.8-203-110-1500-A/D solar borehole pump comes complete with 1500W 110V submersible motor and pump automatic 110V control box with water level sensors and is capable of delivering up to 500L/hour at a depth of 197m. (Solar panels not included, requires solar panels)
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 3″ (7.5cm)
Motor, Pump & Control Box
Solar : 110V 1.5KW
Equipped with an automatic (water level sensors) control box 110V 1.5KW
Warranty : 12 Month
According to our general sales conditions
Specifications
- Power : 1.5KW
- H/Max : 203M
Water Delivery Pump Curve
| 4ESC4.8-203-110V-1500W | 15 | 55 | 90 | 100 | 130 | 150 | 170 | 180 | 197 | DEPTH |
| 4” STAINLESS STEEL B/LESS | 4500 | 4000 | 3300 | 3000 | 2500 | 2000 | 1500 | 1000 | 500 | L/H |
| 110V 1500W H/MAX 203M |
| Weight | 12 kg |
|---|---|
| Dimensions | 110 × 23 × 13 cm |
