DC SOLAR KIT 3” DC ONLY BRUSHLESS 600W (PUMP, MOTOR, CONTROLLER, FLOAT SWITCH)
R6900,00

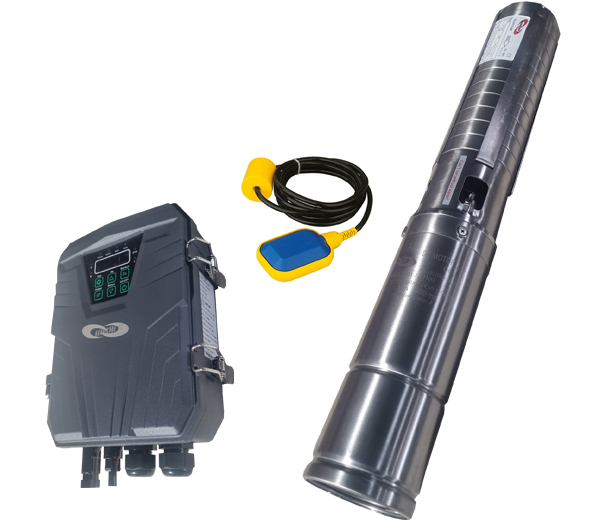

The Hurricane 3EPC3.5-80-48-600 DC Only solar borehole pump comes complete with 600W 48V submersible motor and pump automatic 48V control box with water level sensors and is capable of delivering up to 500L/hour at a depth of 75m. (Solar panels not included, requires solar panels)
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 3″ (7.5cm)
Motor, Pump & Control Box
Solar : 48V 0.6KW
Equipped with an automatic (water level sensors) control box 48V 0.6KW
Warranty : 12 Month
According to our general sales conditions
Specifications
- Power : 0.6KW
- H/Max : 80M
Water Delivery Pump Curve
| 3EPC3.5-80-48V-600W | 5 | 18 | 33 | 47 | 60 | 68 | 75 | DEPTH | |
| 3” BRUSHLESS | 3200 | 3000 | 2500 | 2000 | 1500 | 1000 | 500 | L/H | |
| 48V 600W H/MAX 80M |
| Weight | 10 kg |
|---|---|
| Dimensions | 107 × 26 × 14 cm |
