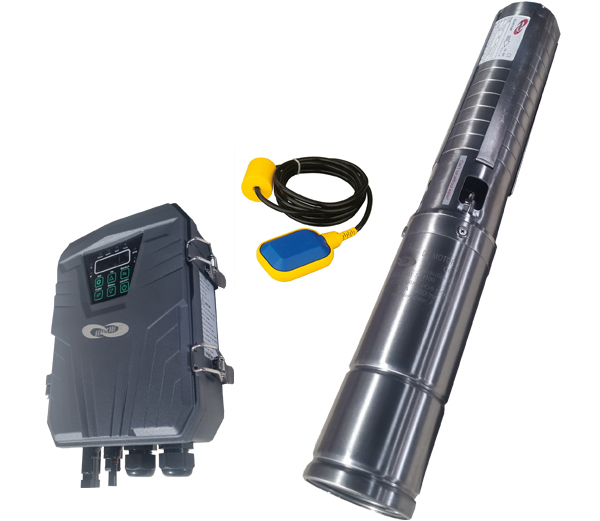

DC SOLAR KIT 3” DC ONLY BRUSHLESS 1100W (PUMP, MOTOR, CONTROLLER, FLOAT SWITCH)
R7762,50
The Hurricane 3EPC3.8-123-72-1100 DC Only solar borehole pump comes complete with 1100W 72V submersible motor and pump automatic 72V control box with water level sensors and is capable of delivering up to 500L/hour at a depth of 113m. (Solar panels not included, requires solar panels)
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 3″ (7.5cm)
Motor, Pump & Control Box
Solar : 72V 1.1KW
Equipped with an automatic (water level sensors) control box 72V 1.1KW
Warranty : 12 Month
According to our general sales conditions
Specifications
- Power : 1.1KW
- H/Max : 123M
Water Delivery Pump Curve
| 3EPC3.8-123-72V-1100W | 5 | 22 | 43 | 60 | 77 | 95 | 108 | 113 | 120 | DEPTH |
| 3” BRUSHLESS | 3800 | 3500 | 3000 | 2500 | 2000 | 1500 | 1000 | 500 | 250 | L/H |
| 72V 1100W H/MAX 123M |
| Weight | 13 kg |
|---|---|
| Dimensions | 165 × 26 × 14 cm |
