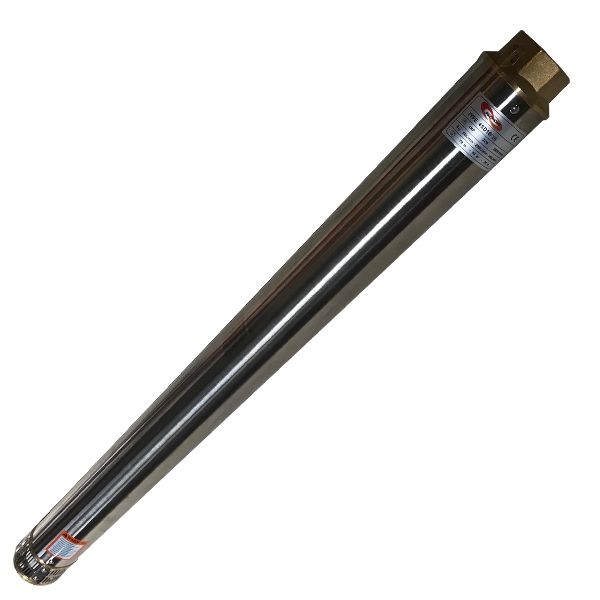

4″ Borehole Submersible Pump End Only 4KW (4SD16/16-17)
R3316,60
The Hurricane 4SD16/16 borehole submersible pump end requires a 4Kw submersible motor to drive it and is capable of delivering up to 50L/min at a depth of 93m.
It can be connected to a 380V three phase 4KW borhole submersible motor.
Additional information
| Weight | 16,1 kg |
|---|---|
| Dimensions | 181 × 11 × 11 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Three Phase : 380V – 415V 4KW 5.5HP / 50Hz
Equip with either a standard (manual) or an automatic control box 4KW 5.5HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 4KW
- Power : 5.5HP
- Pump Diameter : 100mm
| Weight | 16,1 kg |
|---|---|
| Dimensions | 181 × 11 × 11 cm |
