4″ Borehole Submersible Pump End Only 1,5KW (4SD6/15)
R1322,50

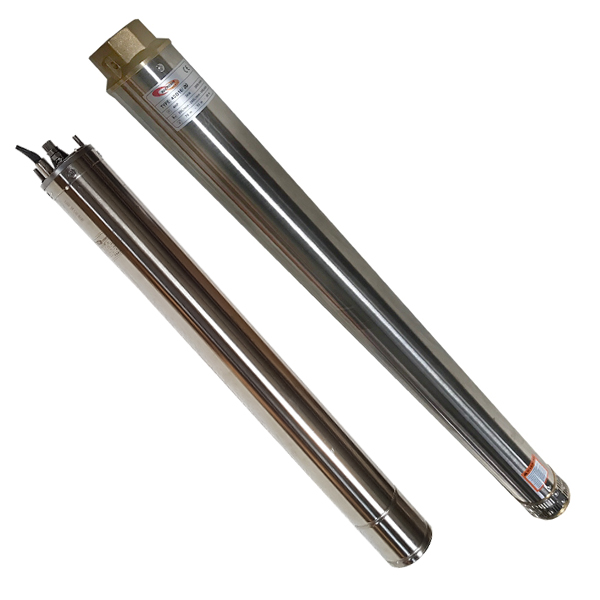

The Hurricane SA 4SD6/15 borehole submersible pump end requires a 1.5KW submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 101m.
It can be connected to a 380V three phase or Single Phase 220V 1.5KW borehole submersible motor.
Additional information
| Weight | 6,8 kg |
|---|---|
| Dimensions | 83 × 11 × 11 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 1.5KW 2HP / 50Hz
Three Phase : 380V – 415V 1.5KW 2HP / 50Hz
Equip with either a standard (manual) or an automatic 380V three phase or 220V single phase control box 1.5KW 2HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 1.5KW
- Power : 2HP
- Outlet : 40mm
- Pump Diameter : 100mm
- Pump Length : 830mm
- Pump Weight : 6.8KG
Water Delivery Pump Curve
| Weight | 6,8 kg |
|---|---|
| Dimensions | 83 × 11 × 11 cm |
