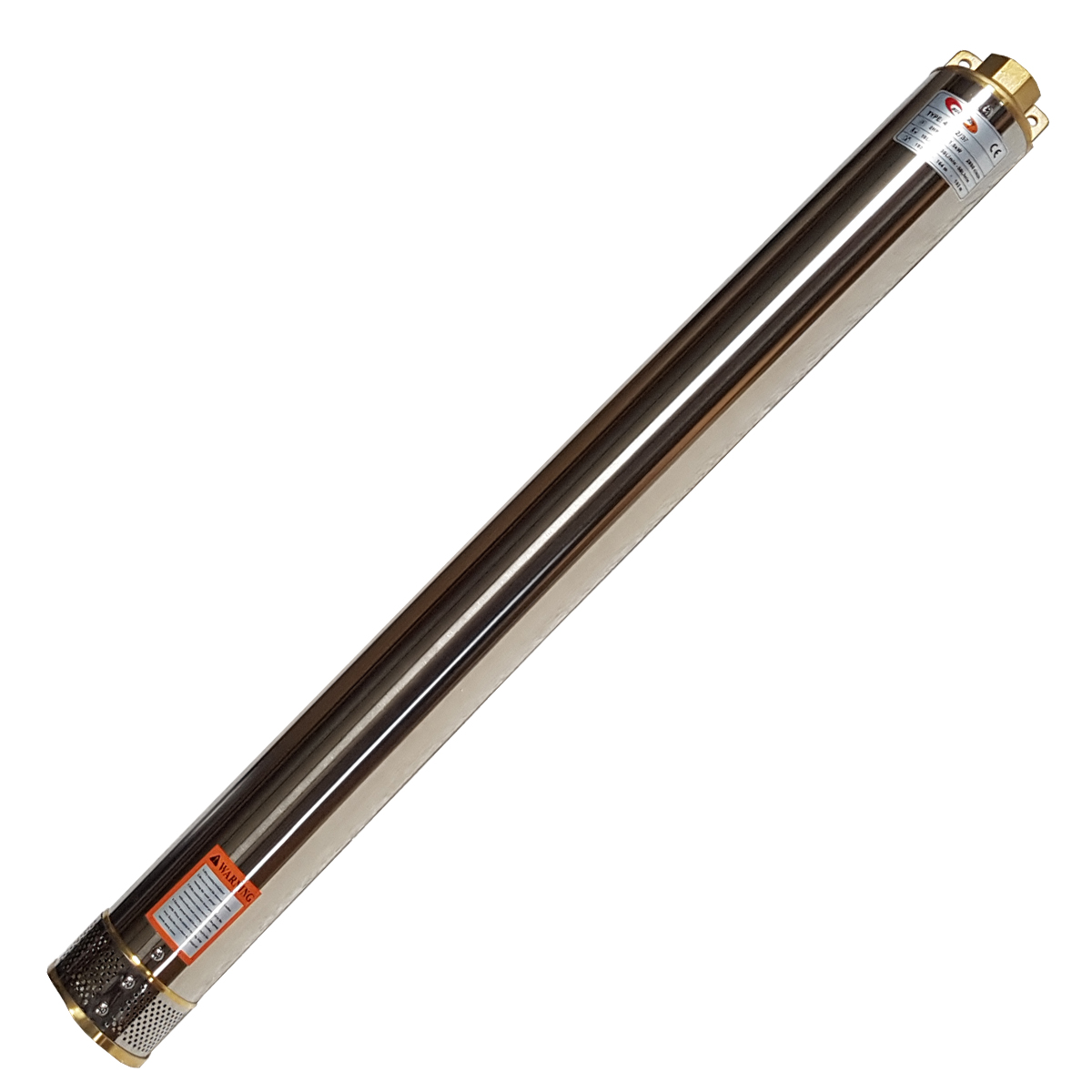

4″ Borehole Submersible Pump End Only 1,1KW (4SD6/11)
R1086,75
The Hurricane 4SD6/11 borehole submersible pump end requires a 1,1Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 74m.
Additional information
| Weight | 5,3 kg |
|---|---|
| Dimensions | 64 × 11 × 11 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 1.1KW 1.5HP / 50Hz
Three Phase : 380V – 415V 1.1KW 1.5HP / 50Hz
Equip with either a standard (manual) or an automatic 380V three phase or 220V single phase control box 1.1KW 1.5HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 1.1KW
- Power : 1.5HP
- Outlet : 40mm
- Pump Diameter : 100mm
- Pump Length : 640mm
- Pump Weight : 5.3KG
Water Delivery Pump Curve
| Weight | 5,3 kg |
|---|---|
| Dimensions | 64 × 11 × 11 cm |
