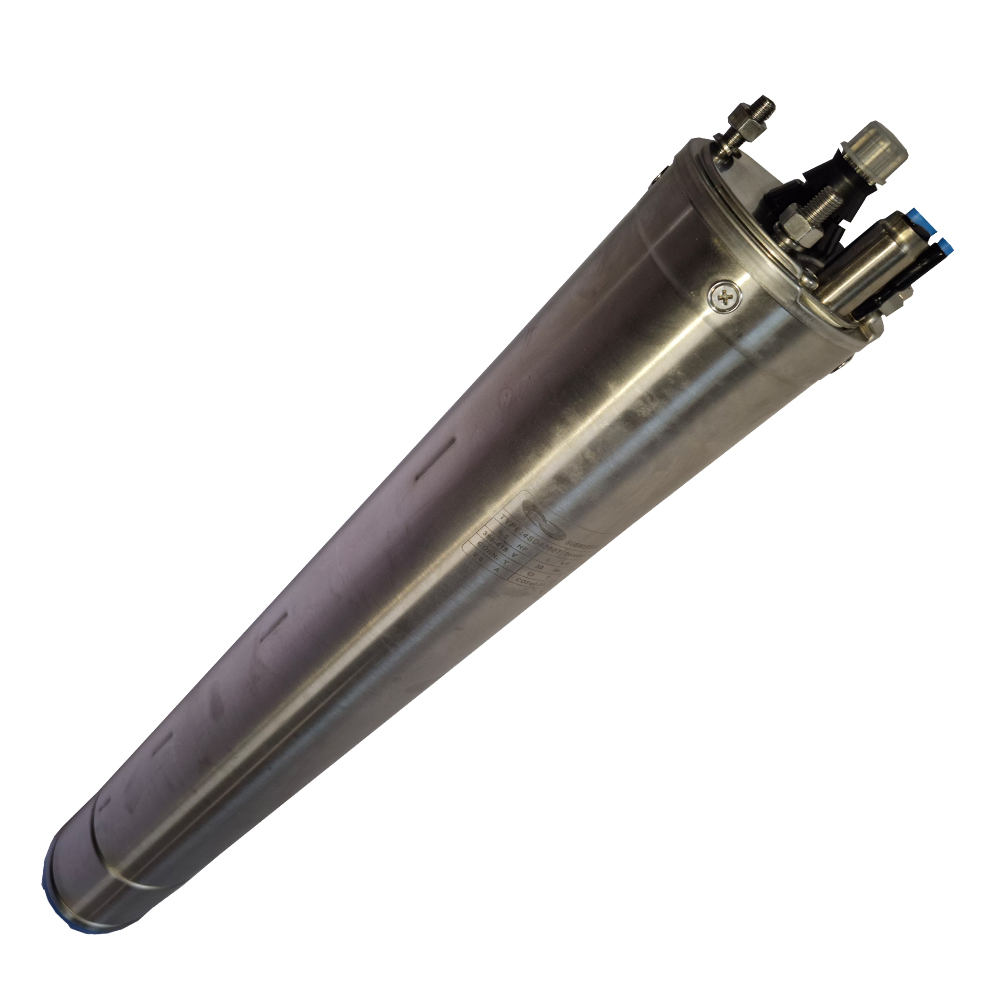

4″ Submersible Borehole Motor 380V 4KW (400380M)
R4076,75
The Hurricane SA 400380M borehole submersible motor is designed to drive any Hurricane SA 4KW submersible borehole pump ends.
It can be controlled by an automatic 4KW 380V control box.
Additional information
| Weight | 25,3 kg |
|---|---|
| Dimensions | 92 × 11 × 11 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Minimum borehole diameter : 4″ (10.16cm)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Voltage : 380V
- Power : 4KW
- Power : 5.5HP
- Current : 10A
- Protection Class : IP68
- Motor Diameter : 100mm
- Motor Length : 655mm
- Motor Weight : 24.7KG
| Weight | 25,3 kg |
|---|---|
| Dimensions | 92 × 11 × 11 cm |
