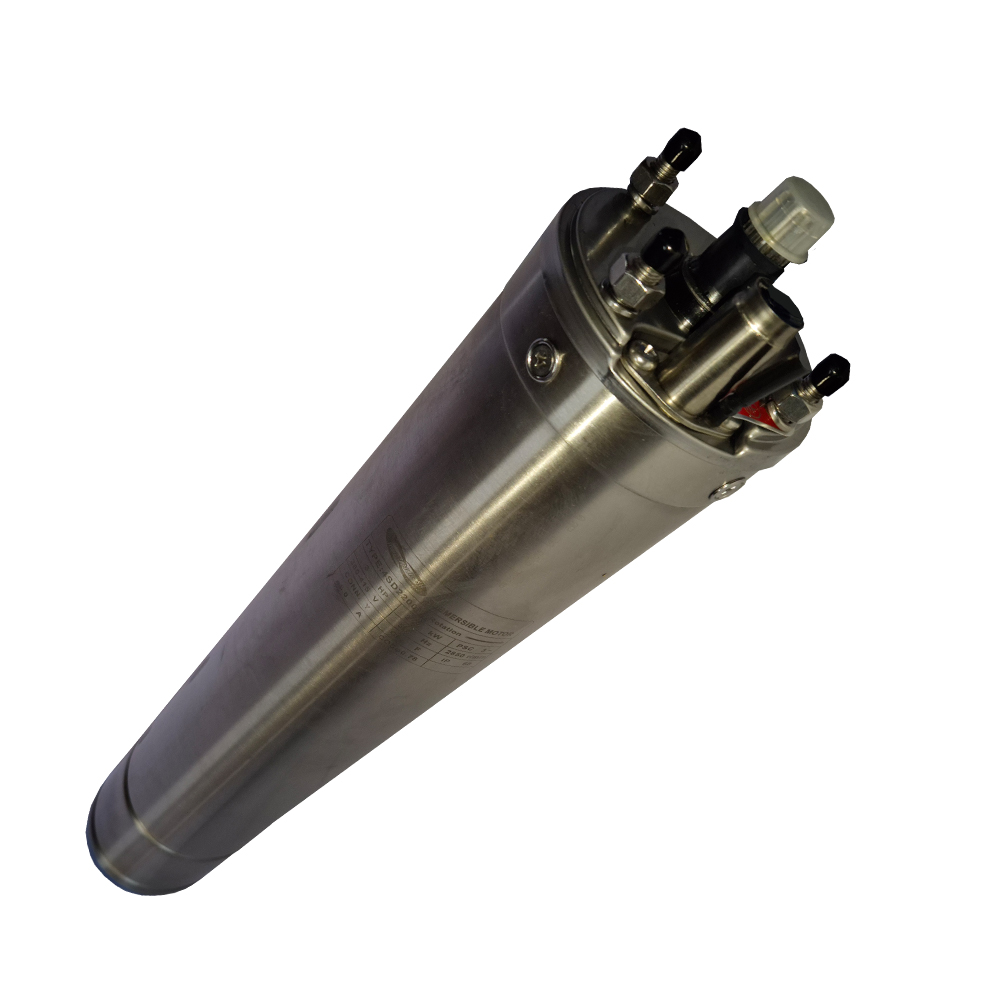

4″ Submersible Borehole Motor 380V 2.2KW (220380M)
R2501,25
The Hurricane SA 220380M borehole submersible motor is designed to drive any Hurricane SA 2.2KW submersible borehole pump ends.
It can be controlled by an automatic 2.2KW 380V control box.
Additional information
| Weight | 15,5 kg |
|---|---|
| Dimensions | 71 × 11 × 11 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Minimum borehole diameter : 4″ (10.16cm)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Voltage : 380V
- Power : 2.2KW
- Power : 3HP
- Current : 6A
- Protection Class : IP68
- Motor Diameter : 100mm
- Motor Length : 501mm
| Weight | 15,6 kg |
|---|---|
| Dimensions | 75 × 11 × 11 cm |
