Combo Borehole Pump Complete 220V 0.55KW Standard Control Box (4SD2/12 COMBO)
R4508,00
The Hurricane 4SD2/12 Combo complete borehole pump comes complete with a 0.55Kw 220V submersible motor and standard 220V control box as well as 80m of 1.5mm Submersible cable and 80m rope and is capable of delivering up to 25L/min at a depth of 77m
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor, Pump & Controlbox
Single Phase : 220V – 240V 0.55KW 0.75HP / 50Hz
Equiped with a standard (manual) control box 0.55KW 0.75HP

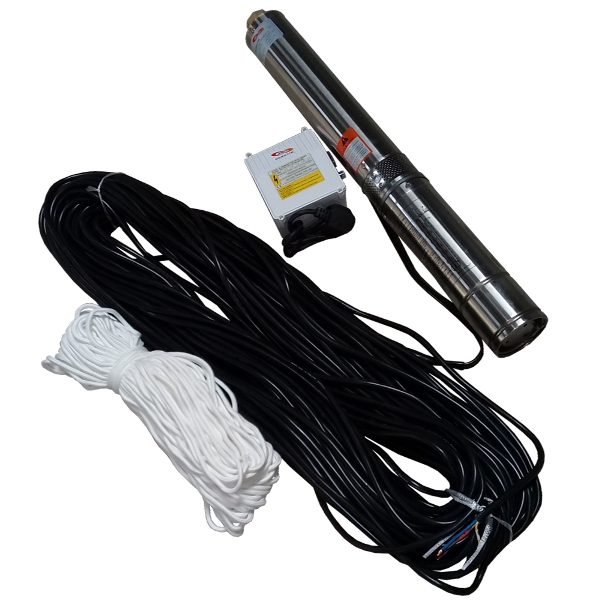

What’s in the box?
1. 0.55kw Motor
2. 4SD2/12 Pump End
3. Standard Control Box
4. 80m Cable
5. 80m Safety Rope
The Hurricane 4SD2/12 Combo complete borehole pump comes complete with a 0.55Kw 220V submersible motor and standard 220V control box as well as 80m of 1.5mm Submersible cable and 80m rope and is capable of delivering up to 25L/min at a depth of 77m
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 0.55KW
- Power : 0.75HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 503mm
- Pump Weight : 4.3KG
Water Delivery Pump Curve
| Weight | 29 kg |
|---|---|
| Dimensions | 108 × 21 × 24 cm |
