6SP30 Pump Ends

Applications
For water supply from boreholes
For domestic, civil, farming and industrial applications
Operating conditions
Maximum fluid temperature up to +50°C
Maximum sand content: 0.25%
6SP30 Minimum well diameter: 6” (150mm)
Wet end
Equip With
Three phase: 380V – 415V/50Hz 6”Motor
Equip with digital automatic 380V control box
Pumps are designed by casing stressed
NEMA Dimension standards

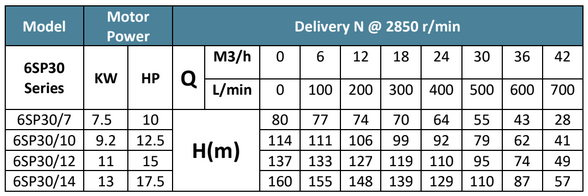

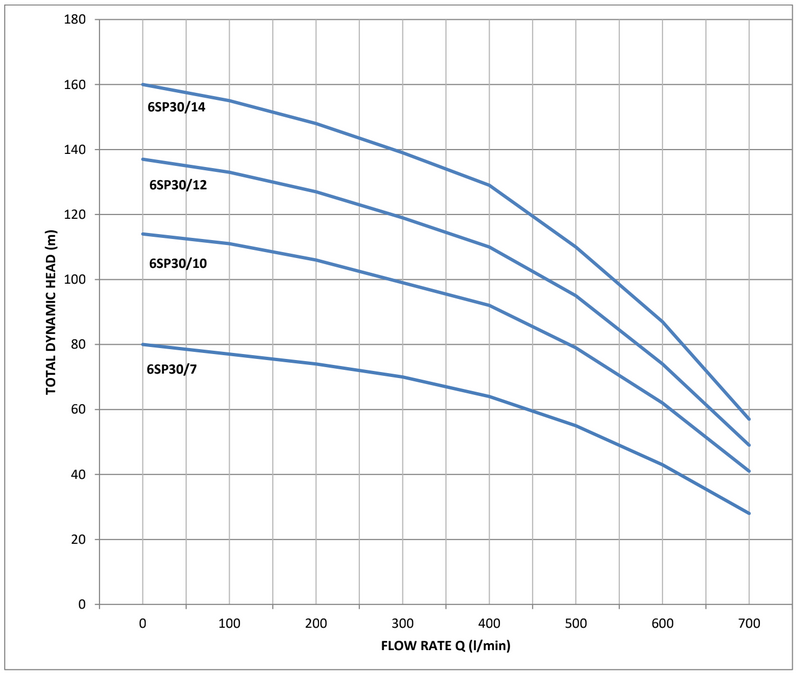

Curve tolerance according to ISO 9906
Warranty: 1 year
(According to our general sales conditions)
