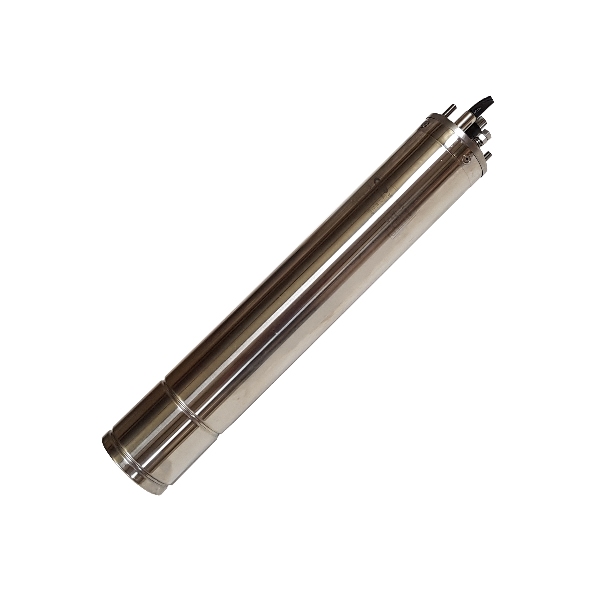

4″ Borehole Submersible Motor Only 2.2KW 220V (220220M)
R2731,25
The Hurricane 220220M borehole submersible motor is designed to drive any Hurricane 2.2KW submersible borehole pump ends.
It can be controlled by either standard (manual) or automatic 2.2KW 220V control boxes.
Additional information
| Weight | 18,1 kg |
|---|---|
| Dimensions | 77 × 11 × 11 cm |
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Minimum borehole diameter : 4″ (10.16cm)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Voltage : 220V
- Power :2.2KW
- Power : 3HP
- Current : 15A
- Capacitor : 75µF 450V
- Protection Class : IP68
- Motor Diameter : 100mm
- Motor Length : 541mm
