Name: 1.1KW, 3 INCH Borehole Kit Pump and Motor Only 220V (3SD2/39)
SKU: 3SD2/39
Availability: InStock

1.1KW, 3 INCH Borehole Kit Pump and Motor Only 220V (3SD2/39)

R3776,50

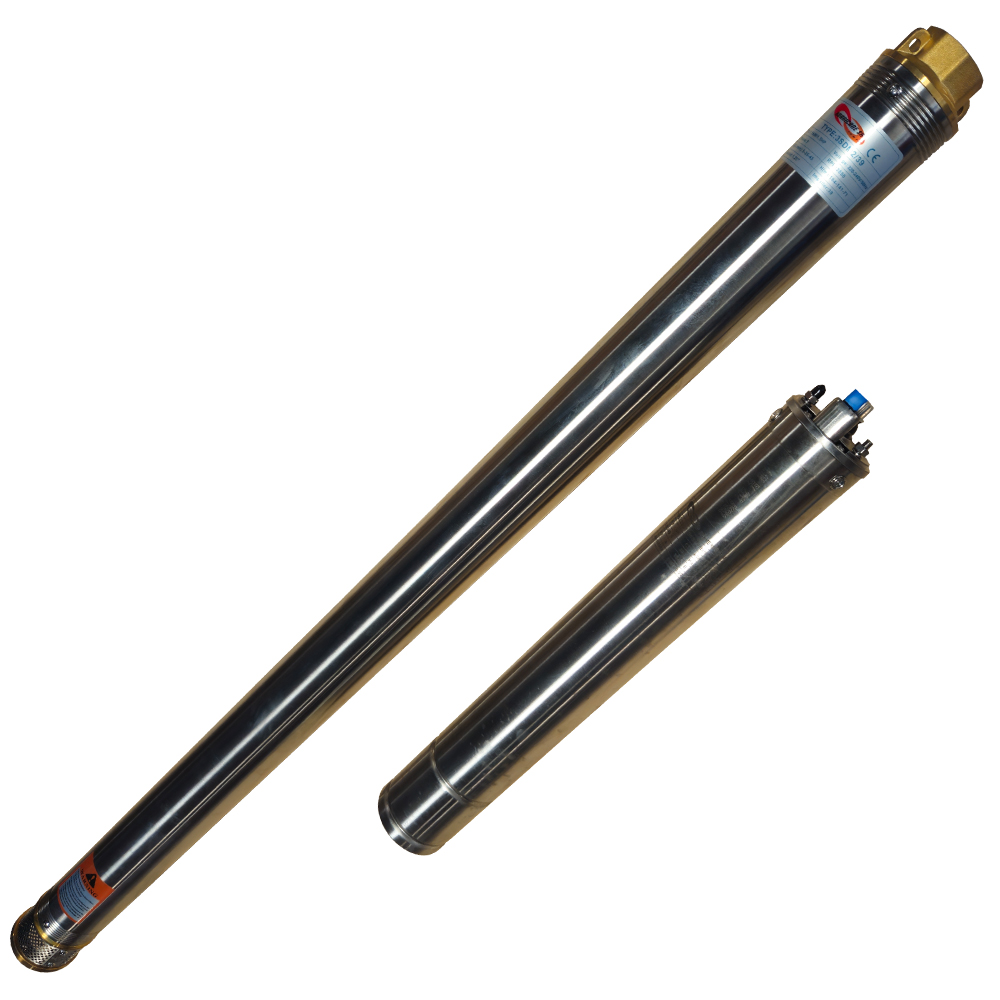

The Hurricane SA 3SD2/39 borehole pump and motor comes complete with a 1.1Kw 220V submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 157m.

Additional information

Weight	16,2 kg
Dimensions	117 × 12 × 22 cm

Operating Conditions

Maximum fluid temperature: up to 35°C
Maximum sand content: 0.25%
Minimum borehole diameter: 3” (7.5cm)

Pump & Motor

Single-Phase : 220V – 240V 1.1KW 1.5HP / 50Hz

Warranty: 12 Month

According to our general sales conditions

Specifications

Speed: 2850RPM
Power : 1.1KW
Power : 1.5HP
Outlet : 32mm
Pump Diameter: 750mm
Pump Length: 428mm
Pump Weight : 3.5KG

Output	10L/min	30L/min	45L/min
Depth	157m	124m	69m

Water Delivery Pump Curve

3SDM2 Series Pump Curve

Weight	16,2 kg
Dimensions	117 × 12 × 22 cm
